Pharma & Chemical
Reactors & Agitated Vessels
SS and CS reactors with agitator drive mounting, mechanical seal nozzles, manholes and sight glasses for batch processing.
View detailsPharma & Chemical
Pharma & Chemical
Jacketed & Limpet Coil Vessels
Process vessels with full jacket or limpet coil for heating and cooling duties in pharma and chemical plants.
View details
Pressure Equipment
Pressure Vessels & Receiver Tanks
Horizontal and vertical pressure vessels, receiver tanks, air and gas receivers, separators and knock-out drums built to code.
View details
Heat Transfer
Heat Exchangers & Condensers
Shell & tube heat exchangers, condensers, vent condensers, coolers and reboilers — fixed tubesheet or U-tube.
View details
Heat Transfer
Finned Tube Heat Exchangers
Air heaters, air coolers and radiator-type exchangers with finned tubes in SS or CS casing.
View details
Storage
Storage Tanks & Process Vessels
Horizontal and vertical storage tanks, day tanks, mixing and holding vessels in SS and CS.
View detailsDistillation & Process Columns
Distillation, absorption and stripping columns, scrubbers and packed towers in SS and CS.
View detailsPressure Filters
Pressure filters and filter vessels for separating solids from process liquors.
View details
Heat Transfer
Heating & Cooling Coils
Internal helical coils, limpet coils and pipe coils for heating and cooling of vessels.
View detailsScrew Conveyors
U-trough and tubular screw conveyors for powders, granules and bulk solids.
View details
Custom
Custom & Specialised Fabrication
Columns, scrubbers, condensate pots, skids, piping spools and any equipment built to your drawing.
View details

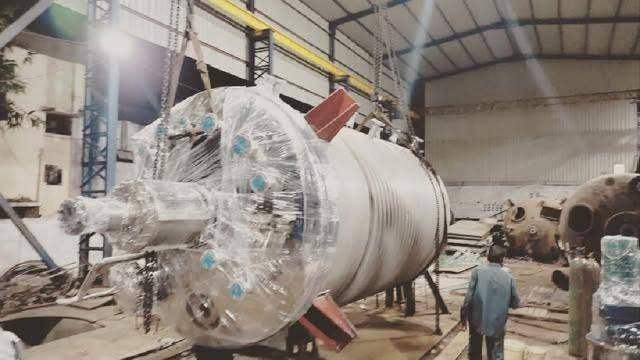

Pharma & Chemical

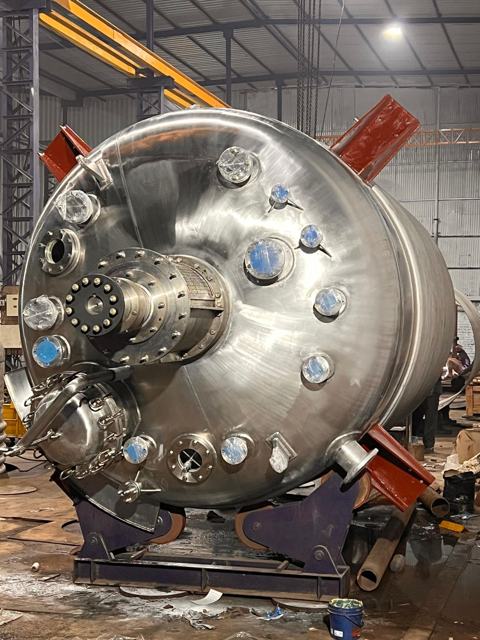

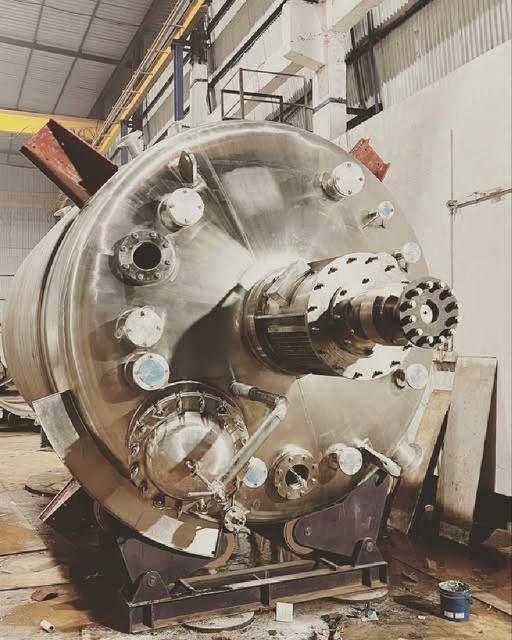

Reactors & Agitated Vessels
Our reactors are built for pharmaceutical, API and chemical batch processes. We fabricate the vessel, jacket or limpet coil, agitator mounting pad and all nozzles to the client's process datasheet, with internal finishes suited to GMP and cleanability requirements.
| Capacity | As per process requirement (typically from a few hundred litres to large-batch sizes) |
|---|---|
| MOC | SS 304 / 304L / 316 / 316L, CS, CS with SS lining |
| Heating / cooling | Conventional jacket, dimple jacket or limpet coil |
| Agitator mounting | Drive pad / lantern for mechanical seal or gland |
| Finish | Matt / mirror polish inside; buffed or painted outside |
| Design | ASME Sec. VIII Div. 1 or client specification |

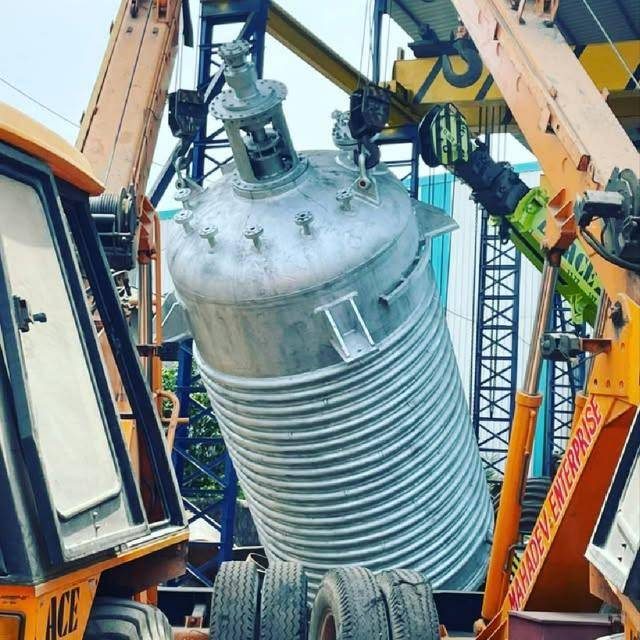

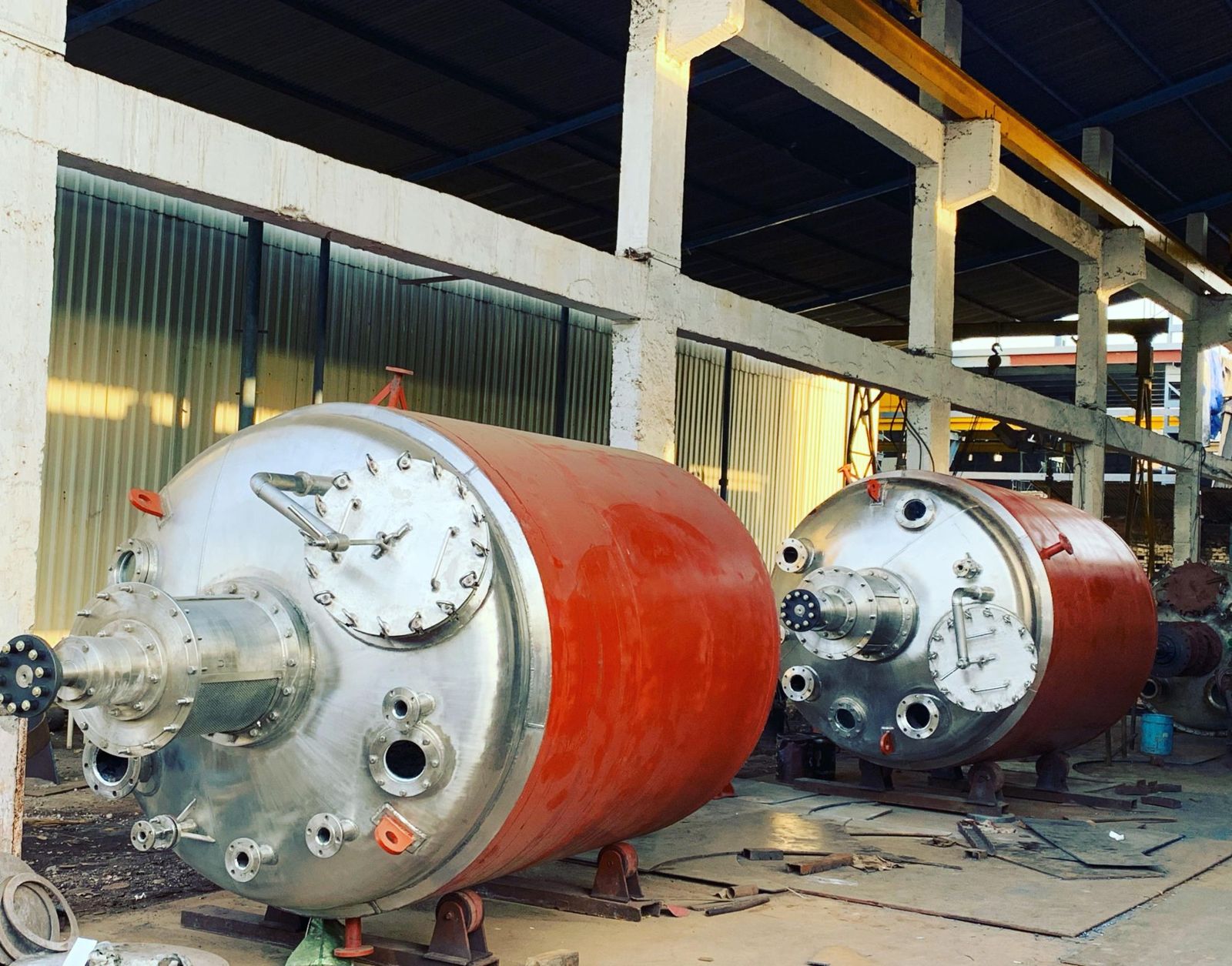

Pharma & Chemical
Jacketed & Limpet Coil Vessels
Jacketed and limpet-coil vessels for heating with steam or thermic fluid and cooling with chilled water or brine. Jacket and coil are designed and hydro-tested separately from the inner vessel.
| MOC | Inner shell SS 316L / 304 / CS; jacket CS or SS |
|---|---|
| Jacket type | Conventional, dimple or half-pipe limpet coil |
| Services | Steam, hot water, thermic fluid, chilled water, brine |
| Testing | Separate hydro test for shell and jacket / coil |
| Accessories | Insulation cladding, legs / lugs / skirt supports |

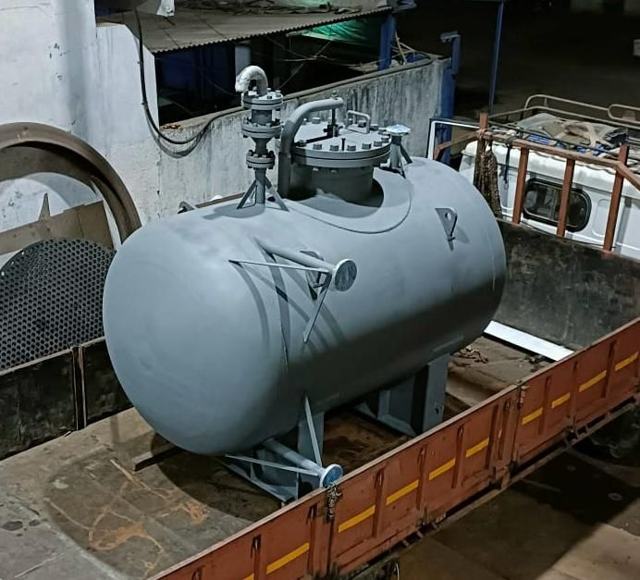

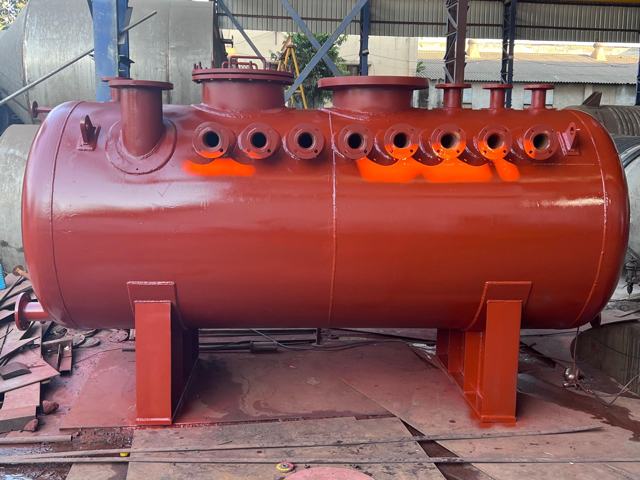

Pressure Equipment

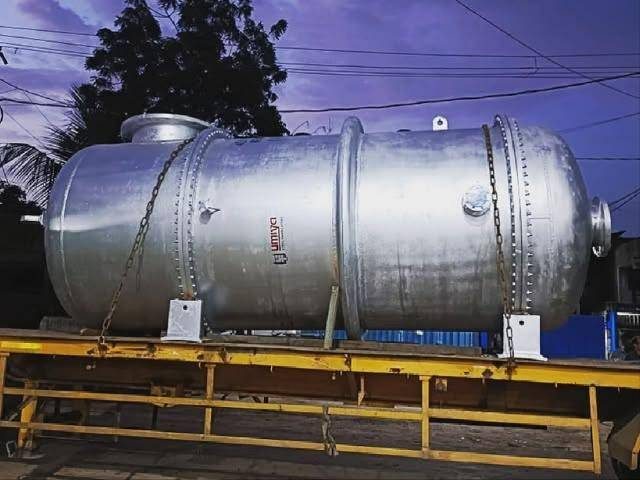

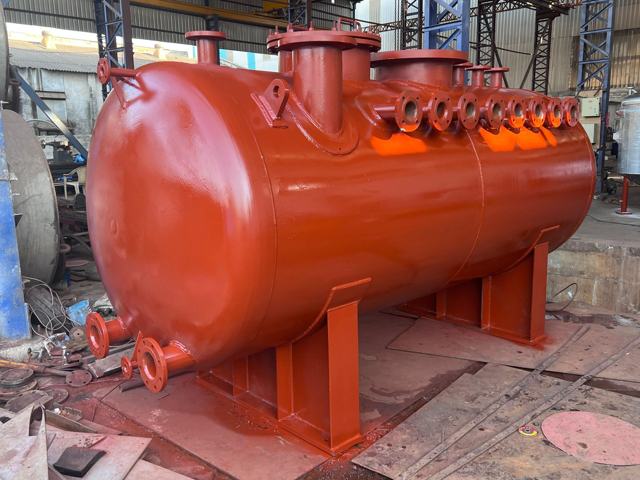

Pressure Vessels & Receiver Tanks
Pressure vessels designed and fabricated with full documentation — design calculations, GA drawings, material test certificates, weld and NDT records and hydro test reports — for inspection by the client or third-party agencies.
| Orientation | Horizontal on saddles, vertical on legs / lugs / skirt |
|---|---|
| MOC | SA 516 Gr.70, SA 285 Gr.C, IS 2062, SS 304 / 316 / 316L |
| Heads | 2:1 ellipsoidal, torispherical, hemispherical, conical, flat |
| Design code | ASME Sec. VIII Div. 1, IS 2825 or as specified |
| Inspection | Stage inspection and TPI welcome; hydro test before dispatch |
Heat Transfer

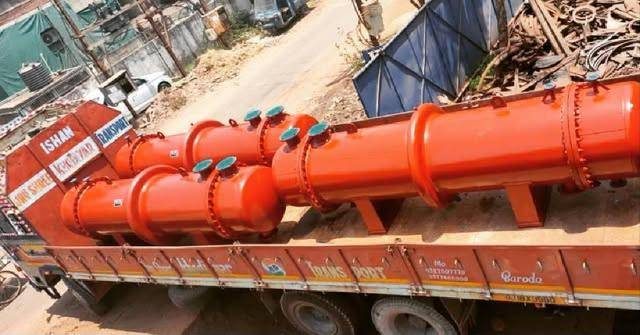

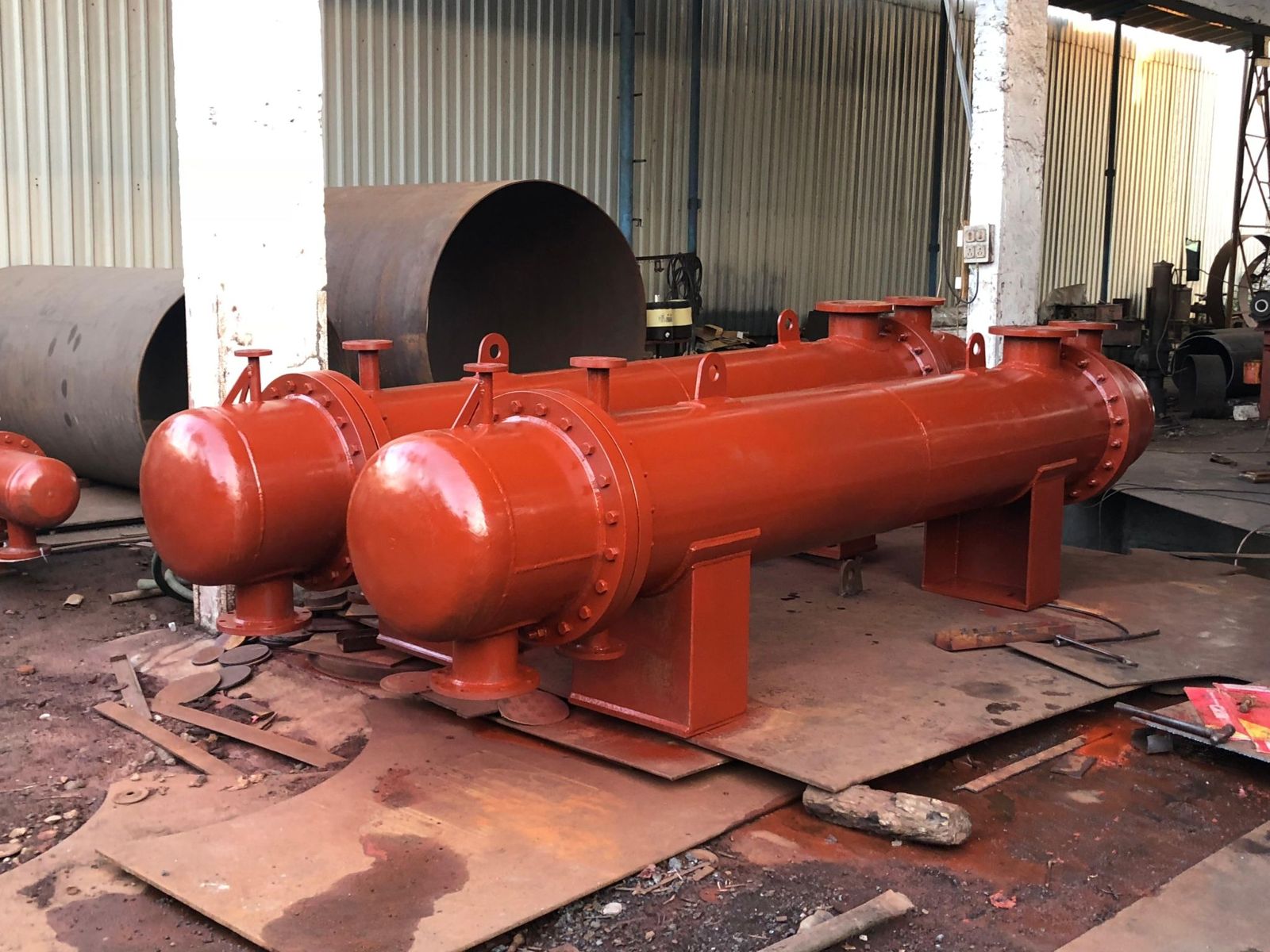

Heat Exchangers & Condensers
Shell and tube heat exchangers, condensers and coolers fabricated to TEMA practice and ASME Sec. VIII Div. 1. Tube-to-tubesheet joints by expansion, seal welding or strength welding as per duty.
| Types | Fixed tubesheet, U-tube, removable bundle |
|---|---|
| Applications | Condensers, coolers, heaters, reboilers, vent condensers |
| MOC | CS, SS 304 / 316 / 316L shell; SS / CS / copper alloy tubes |
| Standards | TEMA class R / C / B practice, ASME Sec. VIII Div. 1 |
| Tube joints | Expanded, seal-welded or strength-welded |

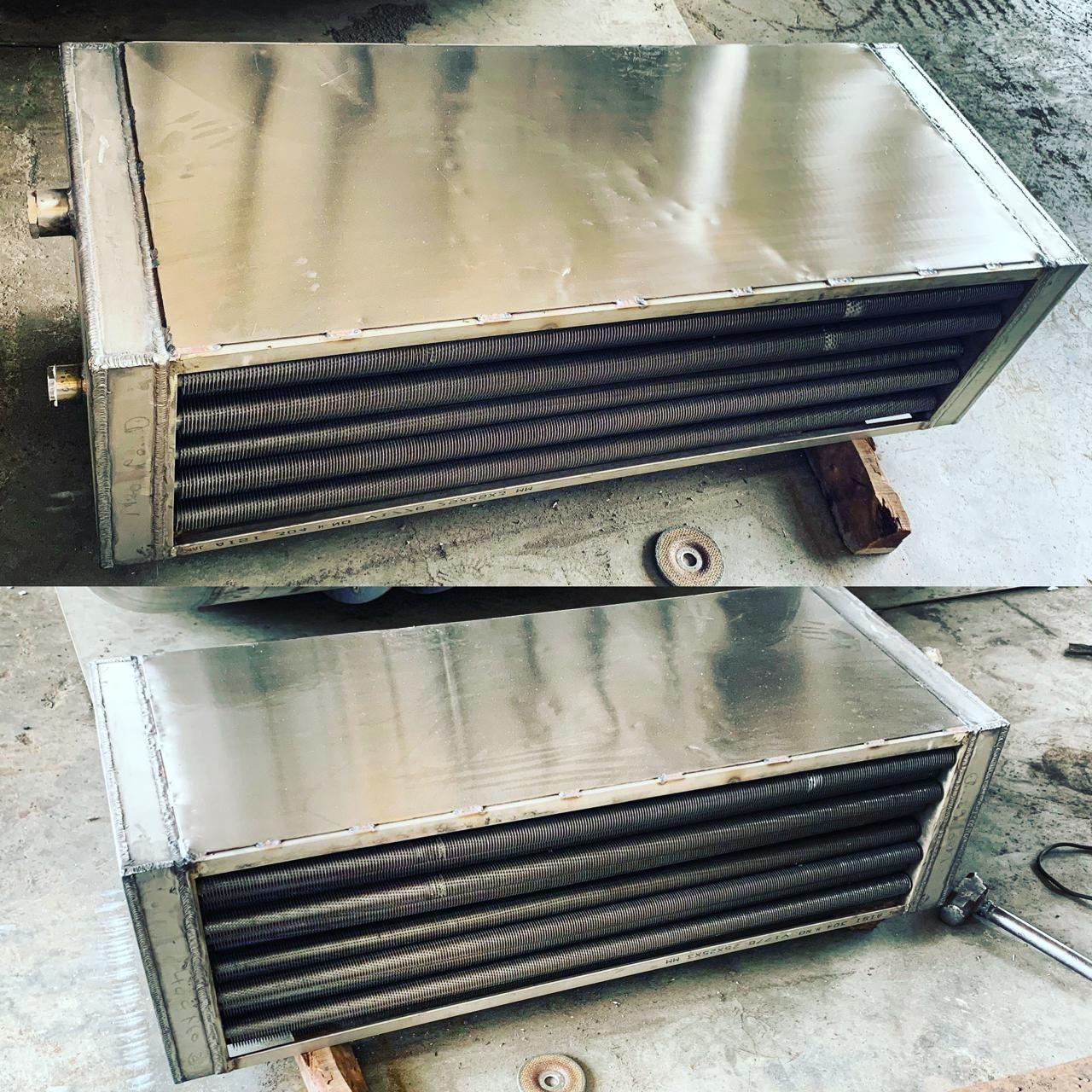

Heat Transfer
Finned Tube Heat Exchangers
Finned-tube heat exchangers for heating or cooling air and gases — used in dryers, spray dryers, ovens and process ventilation. Steam, hot water or thermic fluid on the tube side.
| Fin type | Spiral wound / extruded / G-type fins |
|---|---|
| Casing | SS 304 or CS with flanged connections |
| Media | Steam, hot water, thermic fluid, chilled water |
| Applications | FBD & tray dryers, ovens, AHU, process air heating |

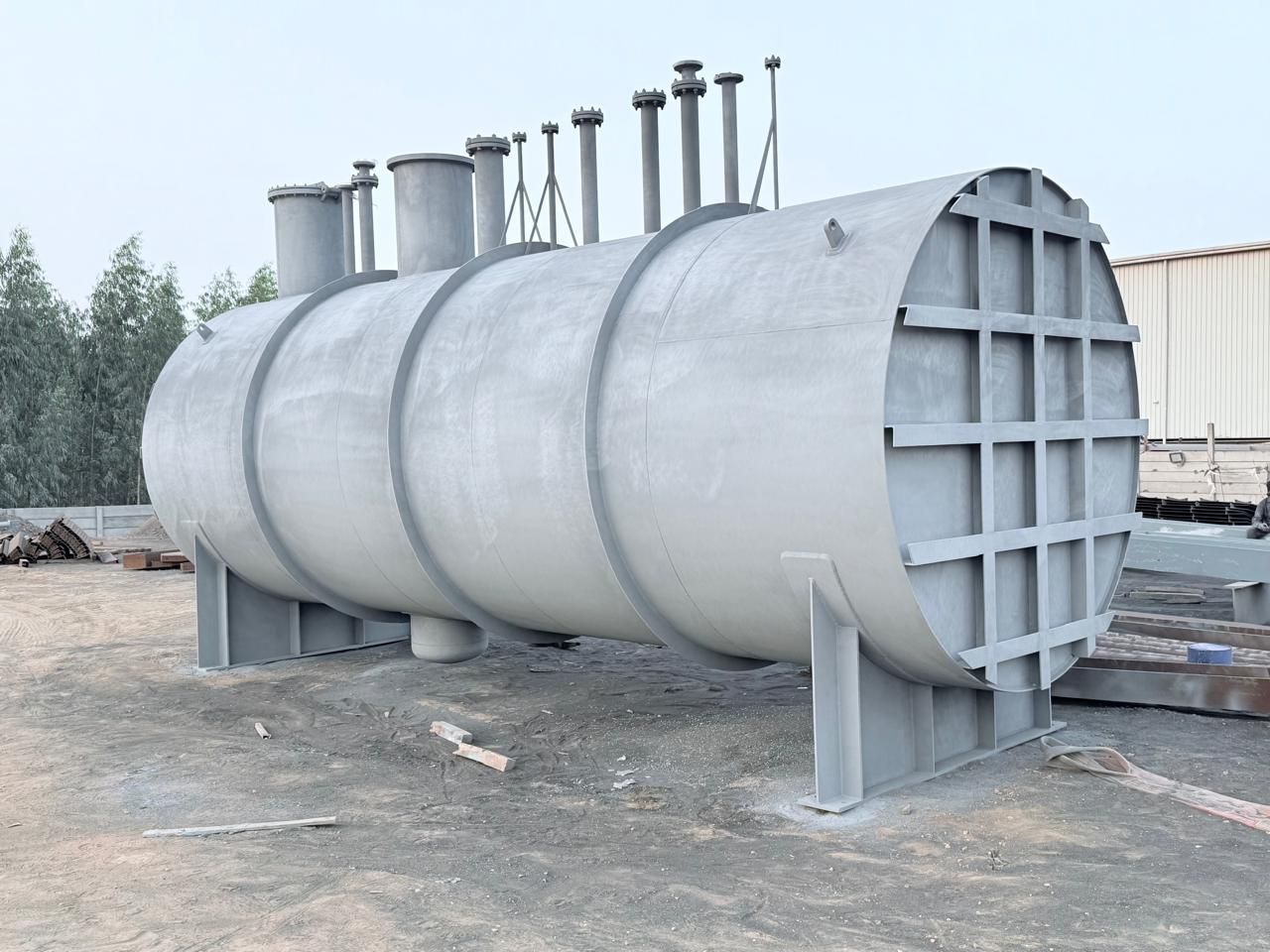

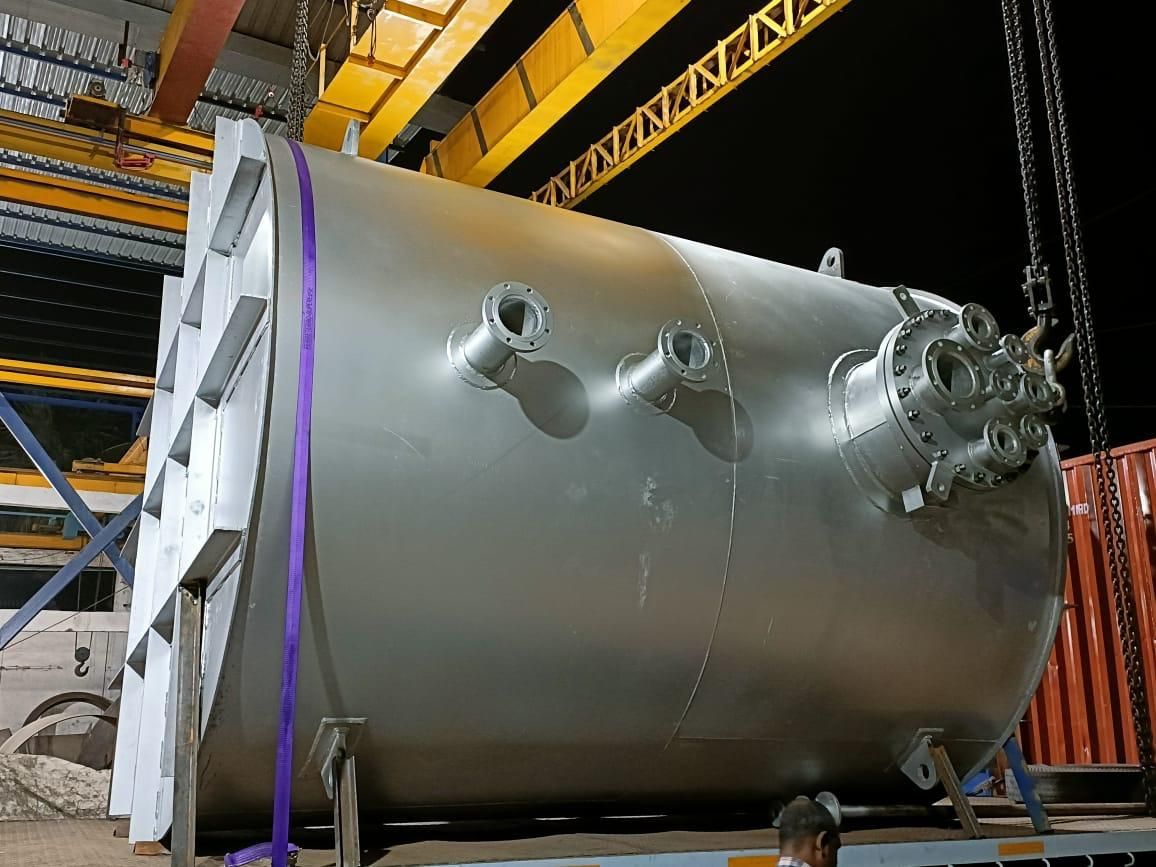

Storage
Storage Tanks & Process Vessels
Storage tanks and atmospheric process vessels for solvents, acids, chemicals, water and oils — including large flat-ended tanks with external stiffeners and stainless steel holding vessels.
| Type | Horizontal / vertical, atmospheric or low pressure |
|---|---|
| MOC | CS, SS 304 / 316 / 316L |
| Design | API 650 / IS 803 / ASME as applicable |
| Accessories | Manholes, ladders, platforms, level gauges, vents |
Photo coming soon — ask us for reference pictures
Mass Transfer
Distillation & Process Columns
Columns for solvent recovery, distillation, absorption and scrubbing — fabricated as single-piece or flanged-section shells with tray supports, packing supports, distributors and nozzles to the process datasheet.
| Types | Packed and tray columns, scrubbers, strippers |
|---|---|
| MOC | SS 304 / 316 / 316L, CS |
| Construction | Single-piece or flanged sections |
| Internals | Tray / packing supports, distributors, demisters |
| Design | ASME Sec. VIII Div. 1 or client specification |
Photo coming soon — ask us for reference pictures
Filtration
Pressure Filters
Pressure filters for pharmaceutical, chemical and dye stuff processes — vessel, filter plate / media support, quick-opening or bolted covers and nozzles fabricated to suit your filtration duty.
| Applications | Product filtration, catalyst / carbon removal, clarification |
|---|---|
| MOC | SS 316 / 316L, SS 304, CS |
| Cover | Bolted or quick-opening |
| Options | Jacket, legs / lugs, CIP connections |
Heat Transfer
Heating & Cooling Coils
Helical and spiral coils for steam, hot water, thermic fluid, chilled water and brine — bent from pipe or tube and supplied loose or fitted in reactors and tanks with supports.
| Types | Internal helical, spiral, limpet (half-pipe) |
|---|---|
| MOC | SS 304 / 316 / 316L, CS |
| Media | Steam, thermic fluid, cooling water, chilled water, brine |
| Testing | Hydro tested before dispatch |
Photo coming soon — ask us for reference pictures
Material Handling
Screw Conveyors
Screw conveyors for transferring and feeding bulk solids in chemical, dye stuff and pharmaceutical plants — fabricated trough or tubular casing, flights, shaft, end bearings and inlet / outlet chutes.
| Types | U-trough, tubular, inclined |
|---|---|
| MOC | SS 304 / 316, CS |
| Duty | Powders, granules, wet cake, bulk solids |
| Drive | Geared motor mounting as specified |
Custom
Custom & Specialised Fabrication
Have a drawing or a datasheet? We fabricate special equipment to your exact design — distillation columns, scrubbers, receivers, filters, strainers, skid-mounted assemblies, ducting and piping spools — with in-house design support when you need it.
| Scope | Build-to-print or design-and-build |
|---|---|
| Items | Columns, scrubbers, receivers, filters, pots, skids, spools |
| MOC | CS, SS, duplex and other alloys on request |
| Support | Drawings, design calculations, QAP and documentation |
Have a datasheet or drawing?
Send it across — we'll review it and come back with a techno-commercial offer.
